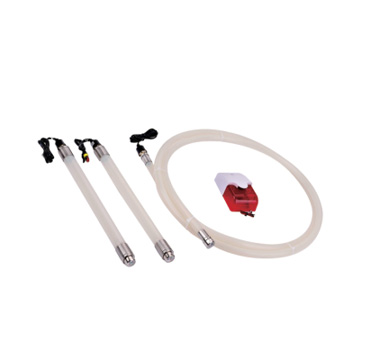

AYZT-FK automatic fire extinguishing device series
The AYZT-FK series is a new type of fire extinguishing device made of special molecular materials, filled with clean fire extinguishing agent inside. When the surface of the device encounters heat, it explodes to form a natural nozzle, and the fire extinguishing agent is released,thereby achieving the effect of suppressing fires.
The surface of the AYZT-FK series is very sensitive to heat. When exposed to fire, the detection tube closest to the fire source will rupture(with nitrogen inside), forming a natural nozzle to release fire extinguishing agent, which can suppress the fire in a timely manner.
Special molecular materials, no need for metal pressure vessels
Using Novec1230(FK-5-1-12) cleaning and extinguishing agent
Wide range of fire extinguishing: suitable for Class A, B, C, and E fires
24/7 automatic detection and extinguishing without manual intervention
Maintenance free, no additional operating costs required
Completely independent operation, no additional power supply required
Long service life, 8-10 years depending on the usage environment
Easy to install, can be self installed according to the manual
When exposed to fire, the detection tube closest to the source of fire ruptures upon exposure to heat (containing nitrogen gas), forming a natural nozzle
The inhibitor released all the suppressive fire extinguishing agent inside the detection tube through the nozzle (burst hole), effectively extinguishing the fire
Both direct and indirect systems can be used in areas of any size and have good fire extinguishing effects. Fire extinguishing engineers will determine which system is suitable for your application
| Number | System Model | Potions | Weight (kg±5%) | Length (mm) | Diameter (mm) | Range (m3) | Starting Temperature (C±10) | Working Temperature (℃) |
| 1 | AYZT18FK | Novec1230(FK-5-1-12) | 0.12 | 500 | 18 | 0.08~0.13 | 110 | -35-65 |
| 2 | AYZT18FK | Novec1230(FK-5-1-12) | 0.25 | 1000 | 18 | 0.18~0.26 | 110 | -35-65 |
| 3 | AYZT18FK | Novec1230(FK-5-1-12) | 0.38 | 1500 | 18 | 0.27~0.40 | 110 | -35-65 |
| 4 | AYZT18FK | Novec1230(FK-5-1-12) | 0.52 | 2000 | 18 | 0.37~0.55 | 110 | -35-65 |
| 5 | AYZT18FK | Novec1230(FK-5-1-12) | 0.66 | 2500 | 18 | 0.46~0.69 | 110 | -35-65 |
| 6 | AYZT18FK | Novec1230(FK-5-1-12) | 0.78 | 3000 | 18 | 0.55~0.82 | 110 | -35-65 |
| 7 | AYZT18FK | Novec1230(FK-5-1-12) | 0.92 | 3500 | 18 | 0.65~0.97 | 110 | -35-65 |
| 8 | AYZT18FK | Novec1230(FK-5-1-12) | 1.05 | 4000 | 18 | 0.74~1.11 | 110 | -35-65 |
| 9 | AYZT18FK | Novec1230(FK-5-1-12) | 1.19 | 4500 | 18 | 0.84~1.26 | 110 | -35-65 |
| 10 | AYZT18FK | Novec1230(FK-5-1-12) | 1.32 | 5000 | 18 | 0.93~1.40 | 110 | -35-65 |
| 11 | AYZT18FK | Novec1230(FK-5-1-12) | 1.45 | 5500 | 18 | 1.03~1.53 | 110 | -35-65 |
| 12 | AYZT18FK | Novec1230(FK-5-1-12) | 1.59 | 6000 | 18 | 1.20~1.68 | 110 | -35-65 |
| Number | System Model | Potions | Weight (kg±5%) | Length (mm) | Diameter (mm) | Range (m3) | Starting Temperature (C±10) | Working Temperature (℃) |
| 1 | AYZT28FK | Novec1230(FK-5-1-12) | 0.15 | 350 | 28 | 0.12~0.14 | 110 | -35-65 |
| 2 | AYZT28FK | Novec1230(FK-5-1-12) | 0.23 | 500 | 28 | 0.18~0.22 | 110 | -35-65 |
| 3 | AYZT28FK | Novec1230(FK-5-1-12) | 0.28 | 600 | 28 | 0.24~0.27 | 110 | -35-65 |
| 4 | AYZT28FK | Novec1230(FK-5-1-12) | 0.33 | 700 | 28 | 0.27~0.36 | 110 | -35-65 |
| 5 | AYZT28FK | Novec1230(FK-5-1-12) | 0.38 | 800 | 28 | 0.30~0.41 | 110 | -35-65 |
| 6 | AYZT28FK | Novec1230(FK-5-1-12) | 0.43 | 1000 | 28 | 0.35~0.56 | 110 | -35-65 |
| 7 | AYZT28FK | Novec1230(FK-5-1-12) | 0.59 | 1200 | 28 | 0.48~0.70 | 110 | -35-65 |
| 8 | AYZT28FK | Novec1230(FK-5-1-12) | 0.75 | 1500 | 28 | 0.60~0.95 | 110 | -35-65 |
| 9 | AYZT28FK | Novec1230(FK-5-1-12) | 1.00 | 2000 | 28 | 0.80~1.18 | 110 | -35-65 |
| 10 | AYZT28FK | Novec1230(FK-5-1-12) | 1.26 | 2500 | 28 | 1.00~1.18 | 110 | -35-65 |
| 11 | AYZT28FK | Novec1230(FK-5-1-12) | 1.52 | 3000 | 28 | 1.22~1.44 | 110 | -35-65 |
Other specification data can be customized (if there are special temperature, length, color requirements can be customized)
