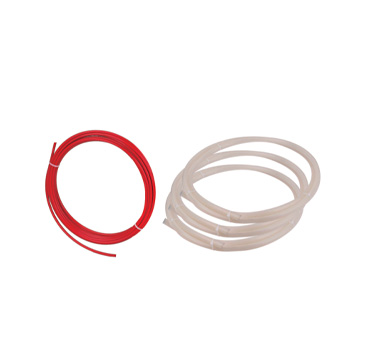

AFZ-L Non Storage Pressure Perfluorohexane 1230 Fire Extinguishing Device
This product is a mature and reliable automatic fire extinguishing device that can be activated by its built-in temperature sensitive components or triggered by electrical signals from other fire control systems
The product uses insulated and environmentally friendly perfluorohexane fire extinguishing agent, which can effectively extinguish various types of fires
Non conductive: Fire extinguishing agents have good insulation properties, with a leakage current of less than10mA at 110KV voltage, so there is no need to worry about the risk of conductivity
Flexible layout: can be used as a single set or combined with multiple sets for layout
High fire extinguishing efficiency: Using a fire extinguishing design concentration of 4%~6%, it can effectively extinguish Class A, B, C, and E fires in the protected area
Number | System Model | Potions | Weight(kg±5%) | Design Concentration | Range (m) |
| 1 | AFZ-L-0.05 | Novec1230(FK-5-1-12) | 0.05 | 4% | 0.09 |
| 2 | AFZ-L-0.10 | Novec1230(FK-5-1-12) | 0.10 | 4% | 0.18 |
| 3 | AFZ-L-0.13 | Novec1230(FK-5-1-12) | 0.13 | 4% | 0.23 |
| 4 | AFZ-L-0.16 | Novec1230(FK-5-1-12) | 0.16 | 4% | 0.28 |
| 5 | AFZ-L-0.20 | Novec1230(FK-5-1-12) | 0.20 | 4% | 0.35 |
| 6 | AFZ-L-0.30 | Novec1230(FK-5-1-12) | 0.30 | 4% | 0.52 |
| 7 | AFZ-L-0.40 | Novec1230(FK-5-1-12) | 0.40 | 4% | 0.70 |
| 8 | AFZ-L-0.50 | Novec1230(FK-5-1-12) | 0.50 | 4% | 0.87 |
| 9 | AFZ-L-0.60 | Novec1230(FK-5-1-12) | 0.60 | 4% | 1.05 |
| 10 | AFZ-L-1.00 | Novec1230(FK-5-1-12) | 1.00 | 4% | 1.75 |
| 11 | AFZ-L-1.30 | Novec1230(FK-5-1-12) | 1.30 | 4% | 2.23 |
| 12 | AFZ-L-1.60 | Novec1230(FK-5-1-12) | 1.60 | 4% | 2.80 |
| 13 | AFZ-L-2.00 | Novec1230(FK-5-1-12) | 2.00 | 4% | 3.50 |
| 14 | AFZ-L-3.00 | Novec1230(FK-5-1-12) | 3.00 | 4% | 5.30 |
Number | System Model | External dimensions L(mm) | L1(mm) | H(mm) | W(mm) | W4(mm) | Installation size L2(mm) | W1(mm) | W2(mm) | W3(mm) |
| 1 | AFZ-L-0.05 | 136 | 100 | 22 | 104 | 18 | 118 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 2 | AFZ-L-0.10 | 136 | 100 | 22 | 104 | 18 | 118 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 3 | AFZ-L-0.13 | 136 | 100 | 22 | 104 | 18 | 118 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 4 | AFZ-L-0.16 | 136 | 100 | 22 | 104 | 18 | 118 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 5 | AFZ-L-0.20 | 136 | 100 | 22 | 104 | 18 | 188 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 6 | AFZ-L-0.30 | 144 | 108 | 25 | 151 | 18 | 126 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 7 | AFZ-L-0.40 | 378 | 342 | 63 | 62 | 18 | 360 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 8 | AFZ-L-0.50 | 378 | 342 | 63 | 62 | 18 | 360 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 9 | AFZ-L-0.60 | 450 | 414 | 63 | 62 | 18 | 432 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 10 | AFZ-L-1.00 | 450 | 414 | 63 | 62 | 18 | 432 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 11 | AFZ-L-1.30 | 450 | 414 | 63 | 62 | 18 | 432 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 12 | AFZ-L-1.60 | 450 | 414 | 63 | 62 | 18 | 432 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 13 | AFZ-L-2.00 | 550 | 514 | 63 | 62 | 18 | 532 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
| 14 | AFZ-L-3.00 | 500 | 514 | 63 | 62 | 18 | 532 | 42 | 2-Φ6x9.5 | 1-Φ6x33.5 |
